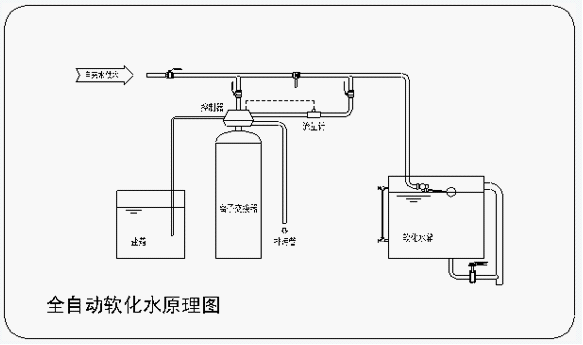

work theory diagram

　　Notes:

　　1. The above mentioned equipment includes one resin tank and one salt tank, and excludes water softening device. All the dimension is only for reference.

　　2. This equipment applies FLECK’s automatic program-controlled multi-channel valves in pursuit of a single valve, a single tank, and automatic flow control.

　　3. It offers customized equipments, such as single-valves, double-tanks, flow controls as well as double-valves, double-tanks, flow controls.

　　4. Hardness of the water after softening: ≤0.03mgN/L, Water pressure at inlet: 0.2～0.6MPa, Working temperature: 2～50℃

　　Power:220V、50Hz, 10～40W; Water consumption: < 2% of the volume of the softened water; Salt consumption: <100g/gew

　　5. When the hardness of the water before softening is less than 6mgN/L, please choose the type according to the maximum amount of water the device can process.

　　When it is ≤8mgN/L, choose the type according to the average amount.

　　When it is ≤10mgN/L, choose the type according to the minimum amount.

　　6. The length and width of the foundation device lengthen the 300 mm respectively, and the height is 150mm.

　　7. Water softening tanks are made of Q235B steel and lined with glass reinforced plastic. The volume of the tank is no less than the amount of water the device can process in an hour.

　　Newsun sells water softening devices for special purposes. Please contact us through phones or on the internet.
