Type
|
Resupplying
water(m3/h)
|
Specification
of the expansion
tank (mm)
|
Volume of the
expansion
tank（m3）
|
Adjustable
volume（m3）
|
Contour
Dimension(mm)
L×W×H
|
Operating
weight (kg)
|
|
NSBS－CN1X50
|
1
|
Ø400x1800h
|
0.15
|
0.05
|
1400×500×2000
|
500
|
|
NSBS－CN2X50
|
2
|
Ø600x1900h
|
0.35
|
0.11
|
1600×600×2100
|
900
|
|
NSBS－CN5X50
|
5
|
Ø800x2400h
|
0.86
|
0.26
|
1800×800×2500
|
1500
|
|
NSBS－CN10X50
|
10
|
Ø1000x2600h
|
1.56
|
0.52
|
2200×1000×2700
|
2200
|
|
NSBS－CN16X50
|
16
|
Ø1200x3000h
|
2.58
|
0.80
|
2200×1200×3100
|
3500
|
|
NSBS－CN22X50
|
22
|
Ø1400x3100h
|
3.61
|
1.11
|
2400×1400×3200
|
4600
|
|
NSBS－CN34X50
|
34
|
Ø1600x3200h
|
5.17
|
1.70
|
2600×1600×3300
|
6600
|
|
NSBS－CN44X50
|
44
|
Ø1800x3300h
|
6.64
|
2.19
|
3000×1800×3400
|
8200
|
|
NSBS－CN56X50
|
56
|
Ø2000x3400h
|
8.64
|
2.85
|
3200×2000×3500
|
10000
|

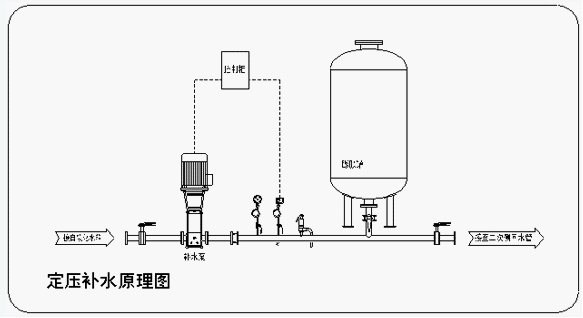

work theory diagram
Notes:
1. The above mentioned units are comprised of one expansion tank, one water-resupplying pump. All the dimension is only for reference.
2. The foundation dimension of the equipment is 300 mm longer than what is mentioned in the table except the thickness, which is 150 mm.
3. The pressure of expansion tank varies from 0.6mpa, 1.0mpa and 1.6mpa, with pump lift 50 meters.
4. Constant water supply pressure is usually settled in heat exchanger units.
5. Newsun manufactures customized to put pressure tank outside the heat exchangers, and combine water supply pump and controller into heat exchanger units.
6. Newsun manufactures customized pressure tank from Italy and German.
7. Notes for NSBS-CN1X50：NS stands for Newsun; BS stands for Bu Shui (Chinese phonetic spelling for constant press water supply); CN stands for Cai Nuan (Chinese phonetic spelling for heating), 2X50 stands for resupplying water and water supply lift.
