Type
|
The volume of
Retrieved
Water (m3/h)
|
Specification
of the Tank
(mm)
|
Volume
of the Tank
（m3）
|
Contour
Dimension(mm)
L×W×H
|
Total Weight (kg)
|
|
NSHS－NJ1X50
|
1
|
Ø800x1800h
|
0.66
|
1800×800×2000
|
1600
|
|
NSHS－NJ2X50
|
2
|
Ø800x1800h
|
0.66
|
1800×800×2000
|
1600
|
|
NSHS－NJ4X50
|
4
|
Ø1000x2100h
|
1.25
|
2000×1000×2300
|
2400
|
|
NSHS－NJ6X50
|
6
|
Ø1000x2100h
|
1.25
|
2000×1000×2300
|
2400
|
|
NSHS－NJ8X50
|
8
|
Ø1200x2200h
|
1.87
|
2200×1200×2700
|
3200
|
|
NSHS－NJ10X50
|
10
|
Ø1200x2200h
|
1.87
|
2200×1200×2700
|
3200
|
|
NSHS－NJ12X50
|
12
|
Ø1400x2600h
|
3.10
|
2400×1400×2800
|
4600
|
|
NSHS－NJ14X50
|
14
|
Ø1400x2600h
|
3.10
|
2400×1400×2800
|
4600
|
|
NSHS－NJ16X50
|
16
|
Ø1600x2700h
|
4.17
|
2600×1600×2900
|
6200
|
|
NSHS－NJ20X50
|
20
|
Ø1600x2700h
|
4.17
|
2600×1600×3300
|
6200
|
|
NSHS－NJ25X50
|
25
|
Ø1800x2800h
|
5.47
|
3000×1800×3000
|
7600
|
|
NSHS－NJ30X50
|
30
|
Ø1800x2800h
|
5.47
|
3000×1800×3000
|
7600
|
|
NSHS－NJ35X50
|
35
|
Ø2000x2900h
|
6.97
|
3200×2000×3100
|
9000
|
|
NSHS－NJ40X50
|
40
|
Ø2000x2900h
|
6.97
|
3200×2000×3100
|
9000
|

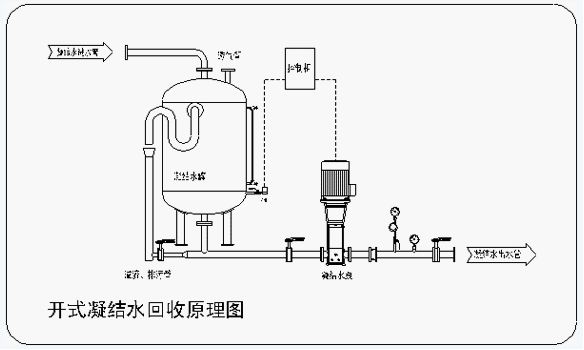

work theory diagram
work theory diagram
Notes:
1. The above mentioned units are comprised of one heat exchanger, one circulating pump and one water-resupplying pump. All the dimension is only for reference.
2. The foundation dimension of the equipment is 300 mm longer than what is mentioned in the table except the thickness, which is 150 mm.
3. The temperature of condensation water is 75 degree; the pump lift is 50 meters.
4. Newsun manufactures customized heat exchangers. Please contact us through phones or reach us on the internet.
